SpringBoot 使用 Allatori 进行代码混淆
🌞 Allatori介绍
Allatori是一个 Java 混淆器,它属于第二代混淆器,因此它能够全方位地保护你的知识产权。 Allatori具有以下几种保护方式:命名混淆,流混淆,调试信息混淆,字符串混淆,以及水印技术。对于教育和非商业项目来说这个混淆器是免费的。支持war和jar文件格式,并且允许对需要混淆代码的应用程序添加有效日期。 有项目需要对代码进行保护,比较初级的方案就是对代码进行混淆,打包之后的文件进行反编译后,就可以看到效果。此外,使用Allatori打的包体积也会小一点。
GitHub地址https://github.com/Lovnx/confusion🌞 使用原因
在很多企业中,代码管理是非常重要的,每个企业都有自己的私有机制,生产出一好的产品,又不想让别人知道自己的技术是如何实现的,就会让搞编程的人,或者是安全师对代码进行保护,这里就是运用Allatori技术对class文件中的代码进行混淆,继而使得其他人即便获取到程序,反编译程序也是徒劳无功、无功而返,这就保证了自己代码的专利性。
🌞 配置步骤

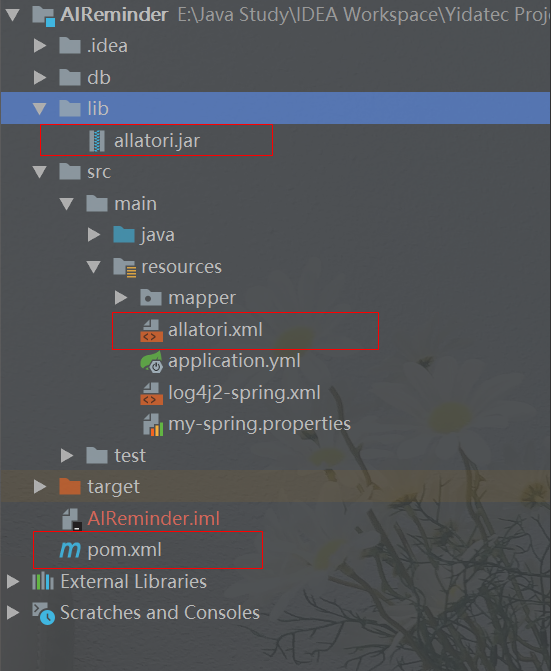

🎉 项目目录结构

🎉 准备资源
下载 allatori.jar
和 allatori-annotations.jar
,下载地址:http://www.allatori.com/,将下载好的文件放到上面项目目录的 lib
下。
🎉 创建allatori.xml文件
在创建的文件中放入一下内容:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
| <config> <input> <!-- in中是待混淆的war包,out是混淆后的war包 --> <jar in="AIReminder-0.0.1-SNAPSHOT.war" out="AIReminder-0.0.1-SNAPSHOT-obfuscated.war"/> </input> <ignore-classes> <!-- 配置了启动相关类不被混淆,保证springboot可以正常启动 --> <!-- 以下请根据自己项目的实际需求进行配置 --> <class template="class com.scaffolding.demo.sys.controller.UploadFileController" /> <class template="class *model*" /> <class template="class *service*" /> <class template="class *utils*" /> <class template="class *config*" /> </ignore-classes> <keep-names> <class access="protected+"> <field access="protected+"/> <method access="protected+"/> </class> </keep-names> <property name="log-file" value="log.xml"/> </config>
|
还有很多配置可以参考官方文档:官网文档
🎉 修改pom.xml文件
查看pom.xml代码
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67
| <build> <plugins> <plugin> <!-- springboot打包插件 --> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> </plugin> <plugin> <!-- resouces拷贝文件插件 --> <groupId>org.apache.maven.plugins</groupId> <artifactId>maven-resources-plugin</artifactId> <version>2.6</version> <executions> <!-- 执行这个插件的时候执行申明的所有phase --> <execution> <id>copy-and-filter-allatori-config</id> <phase>package</phase> <goals> <goal>copy-resources</goal> </goals> <configuration> <!-- 这个地方需要注意拷贝的文件位置需要是target目录,target目录是最终打jar包存放的位置 --> <outputDirectory>${basedir}/target</outputDirectory> <resources> <resource> <!-- 这个地方的文件目录需要注意,网上很多目录都是${basedir}/allatori这个,所以才会需要手动拷贝allatori.xml文件到target目录下,有了这个mvn会自动帮我们拷贝了 --> <directory>src/main/resources</directory> <includes> <!-- 配置文件文件名 --> <include>allatori.xml</include> </includes> <filtering>true</filtering> </resource> </resources> </configuration> </execution> </executions> </plugin> <plugin> <!-- 代码混淆打包插件 --> <groupId>org.codehaus.mojo</groupId> <artifactId>exec-maven-plugin</artifactId> <version>1.2.1</version> <executions> <execution> <id>run-allatori</id> <phase>package</phase> <goals> <goal>exec</goal> </goals> </execution> </executions> <configuration> <executable>java</executable> <arguments> <argument>-Xms128m</argument> <argument>-Xmx512m</argument> <argument>-jar</argument> <!-- 指定引用的allatori的jar包位置,这里把jar包放在了根目录下的lib目录里 --> <argument>${basedir}/lib/allatori.jar</argument> <!-- 指定代码混淆时的配置文件,因为是混淆指定的是jar包,jar包位置在target下,所以我们的allatori.xml也需要拷贝到该目录下 --> <argument>${basedir}/target/allatori.xml</argument> </arguments> </configuration> </plugin> </plugins> </build>
|
🎉 打包
- 在控制台中执行
mvn clean
- 再执行
mvn package -DskipTests

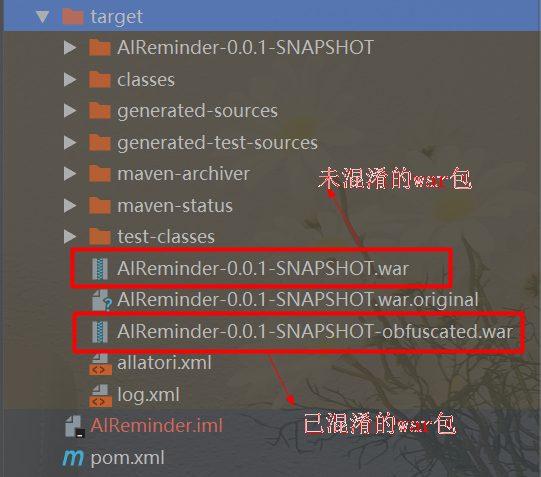

- 执行成功以后,在项目的target目录下会生成你想要的war包

打包好的war包放到 tomcat 下就可以直接部署啦!
如果在部署过程中报错,看一下错误信息,可能是某个类或者方法不能做混淆,就需要在 allatori.xml
中配置相关类不被混淆。
